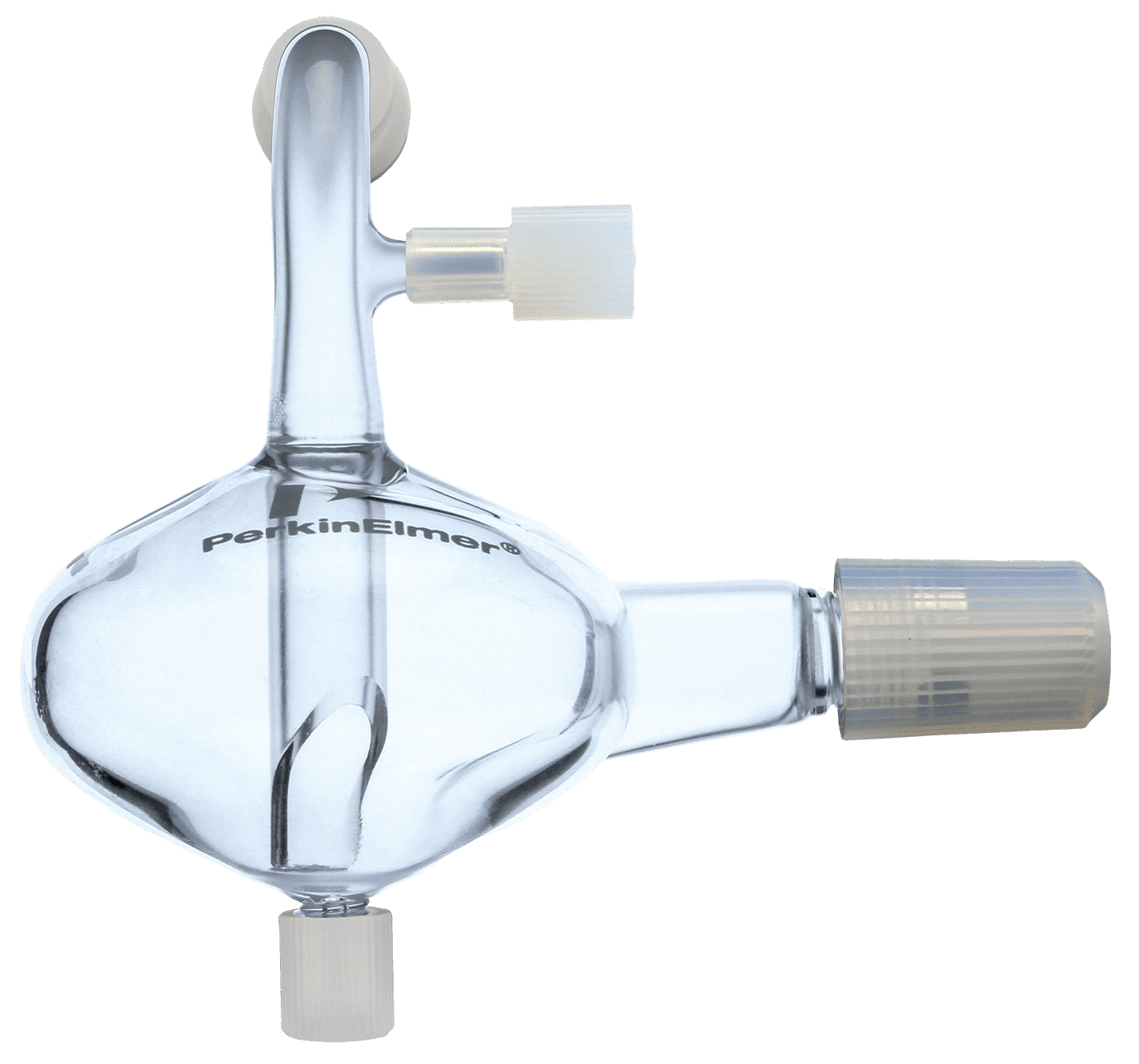

High Sensitivity Glass Cyclonic Spray Chamber with Matrix Gas Port for NexION 1000/2000

The spray chamber is a crucial component of the sample introduction system, designed to filter the sample mist and ensure that only appropriately sized droplets reach the plasma. The baffled cyclonic spray chamber features a central transfer tube that functions as a secondary particle separator, effectively removing larger aerosol particles from the sample. This design reduces the solvent load in the plasma while maintaining detection limits.

The precise spacing between the bottom of the baffle and the chamber wall prevents droplet formation on the baffle’s underside, ensuring smooth drainage and enhanced precision.

This spray chamber is included in the Sample Introduction Kit for NexION 1000 – Purple (N8150038), Sample Introduction Kit for NexION 2000 Core Configuration – Green (N8150035), Sample Introduction Kit for NexION 2000 Productivity Configuration – Black (N8150036), and their respective Consumable Kits (N8150056, N8150055, and N8150058).
